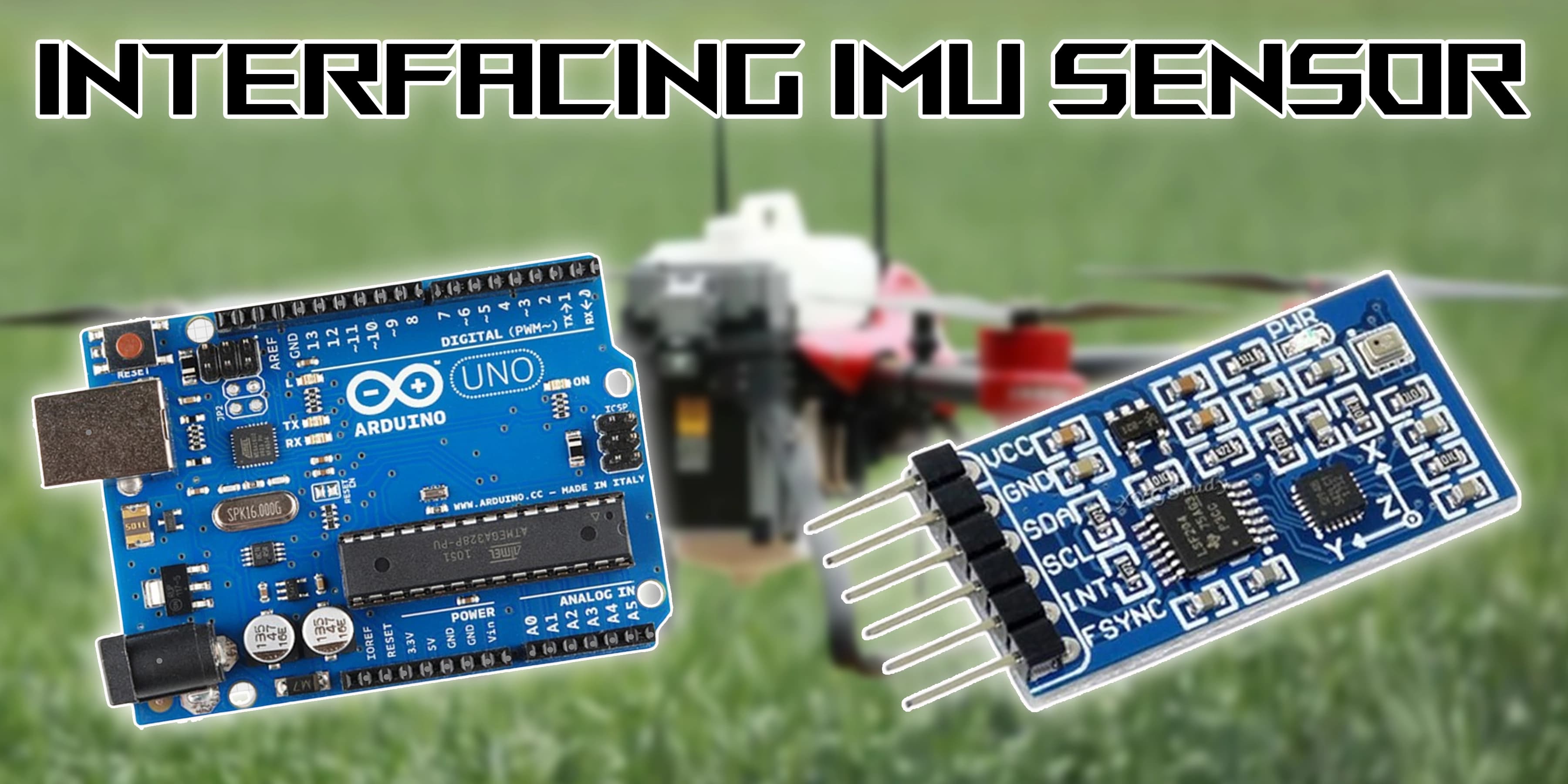

Interfacing IMU Sensor Module with Arduino

IMU Sensor Module

An IMU (Inertial Measurement Unit) Sensor Module detects motion, orientation, and acceleration. It's widely used in drones, robotics, and motion tracking systems.

Working Principle of IMU Sensor

The IMU Sensor works by combining accelerometers, gyroscopes, and sometimes magnetometers to measure linear acceleration, angular velocity, and orientation. Arduino reads this data to understand the module's movement in 3D space.

Types of IMU Sensors

6-DOF IMU Sensor

  • Measures linear acceleration using the accelerometer.
  • Measures rotational movement using the gyroscope.
  • Combines data to detect 3D motion.

9-DOF IMU Sensor

  • Measures acceleration, rotation, and magnetic field.
  • Fuses data to track orientation relative to Earth’s magnetic field.
  • Used in advanced motion and navigation applications.

Requirements

1. Arduino

2. IMU Sensor Module (e.g., MPU6050)

3. Jumper wires

4. Breadboard (optional)

Pin Configuration of IMU Sensor

IMU Sensor Module

  • VCC: Connect to +3.3V or +5V on Arduino (depending on module).
  • GND: Connect to GND on Arduino.
  • SDA: Connect to A4 (for I2C communication).
  • SCL: Connect to A5 (for I2C communication).

Wiring the IMU Sensor Module to Arduino

To connect the IMU Sensor to Arduino, connect VCC and GND to the power supply. Use the I2C pins (SDA to A4, SCL to A5) to enable communication between Arduino and the sensor module.

Algorithm

  1. Initialize Components

    • Connect the VCC and GND of the IMU Sensor to Arduino.
    • Connect SDA and SCL for I2C communication.

  2. Write the Code

    • Include the Wire library and appropriate sensor library (e.g., MPU6050).
    • Initialize the sensor in the setup() function.
    • Read sensor values (acceleration, gyro) in the loop() function.

  3. Display Values or Control Devices

    • Print acceleration and gyro readings to the serial monitor.
    • Use values to control motors, track orientation, or trigger actions.

  4. Test the Project

    • Upload the code to Arduino.
    • Move the sensor in different directions and observe the real-time motion data.

Arduino Code

1#include <Wire.h>
2#include <MPU6050.h>
3
4MPU6050 imu;  // Create MPU6050 object
5
6void setup() {
7  Serial.begin(9600);
8  Wire.begin();           // Start I2C communication
9  imu.initialize();       // Initialize the MPU6050
10
11  // Check connection
12  if (imu.testConnection()) {
13    Serial.println("IMU connected successfully!");
14  } else {
15    Serial.println("IMU connection failed. Check wiring!");
16    while (1);
17  }
18}
19
20void loop() {
21  int16_t ax, ay, az; // Accelerometer data
22  int16_t gx, gy, gz; // Gyroscope data
23
24  // Get data from sensor
25  imu.getMotion6(&ax, &ay, &az, &gx, &gy, &gz);
26
27  // Display values
28  Serial.print("Accel (X, Y, Z): ");
29  Serial.print(ax); Serial.print(", ");
30  Serial.print(ay); Serial.print(", ");
31  Serial.print(az); Serial.print(" | ");
32
33  Serial.print("Gyro (X, Y, Z): ");
34  Serial.print(gx); Serial.print(", ");
35  Serial.print(gy); Serial.print(", ");
36  Serial.println(gz);
37
38  delay(1000);  // Wait for a second
39}
40

Applications of IMU Sensors

  • Drone flight control
  • Robotic navigation
  • Gesture recognition
  • Wearable motion tracking
  • Virtual reality systems
  • Self-balancing devices

Conclusion

Interfacing an IMU Sensor Module with Arduino enables accurate motion sensing and orientation tracking for a wide range of innovative applications. With proper wiring and coding, you can unlock powerful features in your Arduino projects.
